Product Description:

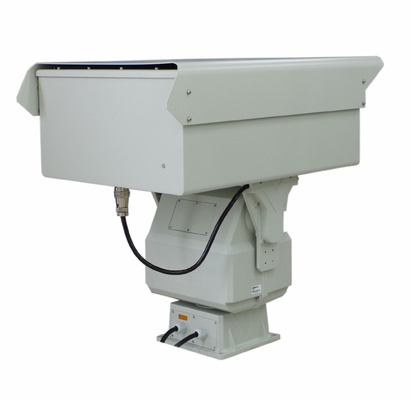

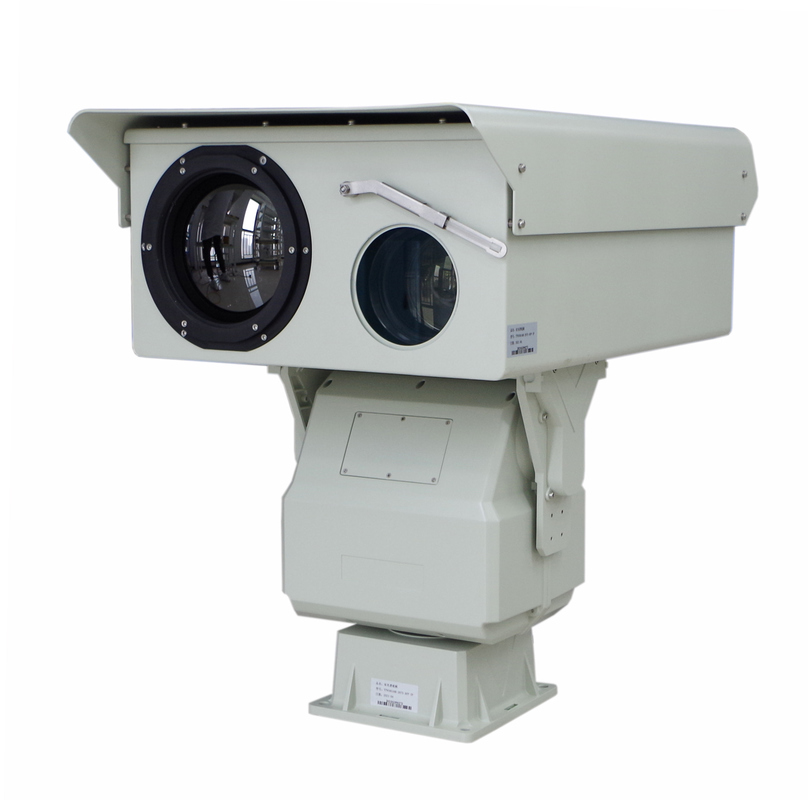

The HP-TTVC6516-2075 smart dual-band camera is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, designed for remote day and night monitoring. Infrared thermal imaging with high sensitivity 640 × 512 / 384 × 288 resolution 17μm ultra-fine resolution uncooled focal plane imaging detector, and AS optical technology designed miniaturized infrared lens, advanced digital circuits and image processing algorithms available Fine and smooth image; visible light adopts full HD color black and white dual mode low illumination CMOS sensor and 30 times compact continuous zoom lens, the volume of the whole machine is greatly reduced, which brings great convenience to users' installation applications, supplemented by 360 The full-scale pan/tilt can realize search and observation within 4000m. The internal industrial-grade embedded control electronic system realizes zooming, focusing, mode switching, pan/tilt/rotation high stability control of the camera, and the overall casing adopts super-strong aluminum alloy to achieve IP66 protection level, ensuring the equipment in the harsh environment in the field. Medium and long term operation.
Equipped with advanced features, such as Infrared Remote Control functionality, the Long Range Infrared Camera offers users convenient access to its settings and controls. This feature simplifies the camera's operation, allowing users to adjust parameters remotely without the need for manual intervention.
Whether used as a standalone surveillance tool or integrated into a larger security system, the Long Range Infrared Camera provides reliable monitoring capabilities for a wide range of applications. From perimeter security to wildlife observation, this camera excels in delivering high-quality images and videos, ensuring clear visibility even in challenging lighting conditions.
In conclusion, the Long Range Infrared Camera is a versatile and dependable surveillance solution that combines cutting-edge technology with robust design. With its exceptional performance, weatherproof construction, and user-friendly features, this camera is an ideal choice for organizations and individuals seeking reliable monitoring solutions for various applications.
Features:
- It integrates infrared thermal image, high-definition visible light, video coding, pan/tilt cover and control electronic system. It has integrated design, high concentration and easy installation and use.
- The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow;
- Unique AS optical design and high precision optomechanical design for superior image quality;
- Excellent non-uniform image correction technology with good image uniformity and dynamic range;
- SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targets;
- Visible light is based on full HD color/black and white dual mode low illumination CMOS sensor design, 30 times compact continuous zoom lens, small size and light weight;
- It adopts heavy-duty CNC pan/tilt, 360o continuous rotation observation, no dead angle, stable operation and small image jitter;
Technical Parameters:
| Model |
HP-TTVC6516-2075 |
| Detection |
Vehicle 13,000 m Human 4,800 m
For fire 6,000 m (2m X 2m )
|
| Recognition |
Vehicle 3,400 m Human 1,300 m |
| Sensor |
5th generation UFPA VOx sensor |
| Resolution |
640*512 |
| Spectral response |
7.5～14μm |
| NETD |
50mK(@25℃ F1.0) |
| Focal length |
31～155 mm |
| FOV |
20°×15°～4°×3° |
| Lens control |
1. Zoom: Electric zoom
2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed
3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process
|
| Image Processing |
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 2×, 4×, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
| Visible Camera |
1. 1/1.8'' target surface star-level CMOS, integrated ICR dual filter day and night switching
2. Resolution: 2 Mega pixels, 1920×1080
3. Illumination: color: 0.001 Lux; black and white: 0.0001Lux
4. Encoding: H.265/H.264 video format, support multi-stream
5. Video bit rate: 32Kbps ~ 16Mbps, 60Hz 30 frames / sec
6. Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection, face detection
7. Support AFR anti fog, electronic stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic, anti-infrared overexposed, ABF automatic rear coke adjustment function
|
| Visible Lens |
1. Focal length: 22~750mm, 200 Megapixel, electric zoom (optional 12.5~750mm lens)
2. Infrared correction: Optical infrared correction design, day and night focus consistent
3. Focus: Manual/Auto Focus, 3A Adaptive active Focus algorithm, support a variety of trigger modes, accurate high-speed
4. Automatic aperture: Support
5. Day and night Light: 0.4-0.75um visible Wide Spectral window and 0.8-0.95um near infrared laser narrow spectrum window clock independent double-pass light window to improve the signal-to-noise ratio of imaging light and stray light
6. Preset Position: Precision potentiometer, zoom focus Feedback
|
|
Laser Source
(optional)
|
1. Power: 15 W
2. Wavelength: 810nm military grade infrared laser
3. Illumination angle: 0.5 ° ~ 20 °, DSS digital step lighting angle control technology
4. Homogenization: GHT-II high-definition lens group ultra-homogenization patented technology, brightness balance of all focal lengths is > 92%
5. Laser safety: ZQB safety laser beam processing patent technology, in line with international IEC60825 safety standards
|
| Housing |
1.Material: integral aluminum alloy housing, stainless steel, anti strong wind ;
2.Structure: Integral double window
3.Window glass: 4mm optical glass ,transmission＞98% ；
4.Surface coating: PTA three-proofing coatings ,
5.Protection:IP66(IP67 optional )
6.Applied thermal balance design and wide temperature electronics ,which could operate under high / low temperature ;
7.Interface : waterproof aviation connector ;
|
| PT |
1. Load: 50kg PTZ
2. Range: Pan 0 ~ 360 °, Tilt -45 ° ~ +45 °
3. Speed: horizontal 0.01 ° / S ~ 30 ° / S, pitch 0.01 ° / S ~ 15 ° / S, support lens focal length speed adaptive function
4. Preset position: 255, support lens zoom, focus preset
5. Accuracy: ±0.1°
6. Patrol sweep: support 6 cruises, 1 apple peel, 1 line sweep
7. Watch: Preset / Auto Cruise Route / Auto Scan Route
8. Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status)
9. Bearing information: support angle query return, positioning
10. Zero point correction: support north direction zero point remote correction function
11. Power consumption: about 120W
12. Weight: 23kg
|
| Interface |
1. Network interface: 1 way RJ45, 10/100 Base-T adaptive (integrated video output and RS422/485 control communication)
2. Network protocol: support TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2. 0, GB28181 and other network protocols
3. Power supply: AC/DC24V, anti-reverse protection
4. Physical interface: alloy waterproof aviation plug
|
| Enhanced Function |
1. Glare protection: support, anti-sun burn function
2. Temperature correction: no thermal image design, imaging resolution is not affected by temperature
3. Scene mode: support multiple configuration scenarios, adapt to no environment application
4. Auto focus tuning: support remote auto focus precision parameter adjustment, adapt to different scenes
5. Day and night cruise: day and night group cruise different preset groups, day cruise 1-40 preset position, night cruise 41-80 preset position, automatically switch day and night according to the photosensitive state, adapt to different time and space scenes
6. Lens servo: support lens preset position, focal length return, focus positioning function
7. Parameter setting: OSD menu remote call operation
8. Remote maintenance: support embedded program remote upgrade for easy after-sales maintenance
|
| Power & Weight |
1. Total power consumption: 120W
2. Total weight: 25kg (including Pan/Tilt)
|
| Environment indicator |
1. Working temperature: -25 ℃~ +60℃ (optional -40 ℃)
2. Storage temperature: -45℃ ~ + 70 ℃
3. Humidity: <90%
4. Earthquake resistance: 0.2g (according to the 5.4 severity level 2 of GB/T15211-2013)
5. Impact resistance: 15g (according to the 5.3 severe level 3 of GB/T15211-2013)
6. Lightning protection: built-in surge protection of interface circuit, power supply 4000V, signal 2000V
7. Anti-salt fog: at pH 6.5 ~ 7.2, continuous spraying for 96 hours, no change in surface
Protection level: IP66
|
Applications:
The Hope-Wish long-range infrared camera, model HP-TVC, is a versatile surveillance tool suitable for a wide range of applications. With its high-quality components and advanced features, this product is ideal for various occasions and scenarios.
One of the key application areas for the HP-TVC is in security and surveillance. The infrared capabilities of the camera make it perfect for monitoring areas in low-light or nighttime conditions. Whether used for home security, commercial properties, or government facilities, the HP-TVC provides clear and detailed images in all lighting conditions.
Another important application for this product is in wildlife observation and research. The long-range capabilities of the camera allow users to observe animals from a safe distance without disturbing them. Researchers can use the HP-TVC to study animal behavior, monitor habitats, and conduct wildlife surveys with ease.
For outdoor enthusiasts, the HP-TVC is a great tool for camping, hunting, and outdoor activities. The camera's infrared remote control allows users to adjust settings and capture images or videos from a distance, making it convenient to use in various outdoor scenarios.
In industrial settings, the HP-TVC can be used for monitoring equipment, inspecting infrastructure, and ensuring workplace safety. The durable construction of the camera, with dimensions of 200mm x 100mm x 100mm, and a load duty of 50kg, makes it suitable for harsh environments and heavy-duty applications.
Overall, the Hope-Wish HP-TVC long-range infrared camera, with its preset options, 808nm IR laser, 25mm lens, and high-quality components, is a versatile and reliable tool for a wide range of applications. Whether used for security, wildlife observation, outdoor activities, or industrial monitoring, this camera offers clear and detailed images in all conditions.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
The Long Range Infrared Camera product comes with a comprehensive Product Technical Support and Services package. Our team of experts is available to assist you with any technical issues or questions you may have regarding the product. This includes troubleshooting, installation guidance, software updates, and general product support.
FAQ:
Q: What is the brand name of this Long Range Infrared Camera?
A: The brand name of this camera is Hope-Wish.
Q: What is the model number of this Long Range Infrared Camera?
A: The model number of this camera is HP-TVC.
Q: Where is this Long Range Infrared Camera manufactured?
A: This camera is manufactured in China.
Q: What is the maximum range of this Long Range Infrared Camera?
A: The maximum range of this camera is 500 meters.
Q: Does the Long Range Infrared Camera come with night vision capabilities?
A: Yes, this camera is equipped with advanced night vision technology for clear imaging in low-light conditions.
