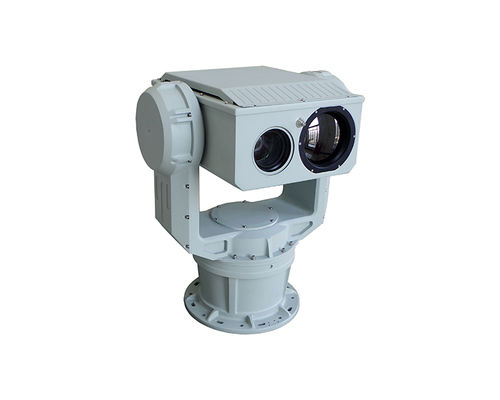

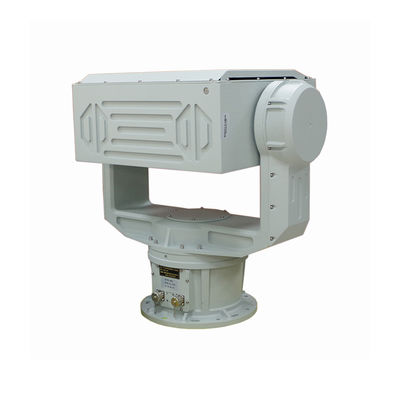

DMA Long Range Multi-Sensor Optical Platform Anti Drone System Camera For Detection Range Of 5-10KM

Product Description:

The DMA series multi-sensor optical platform camera is independently researched and developed by our company. It is specially designed for the key areas surveillance such as conference centers, office buildings, prisons, airports, military bases, nuclear, biological and chemical industries, border and coastal defenses. Optical platform camera system, it is can integrate multi-spectrum detection modules such as high-definition visible light camera, refrigerated/uncooled thermal imager, near-infrared laser illumination, etc., and can be equipped with laser range finder, electronic compass, automatic tracking, intelligent analysis, etc. The module realizes the functions of all-weather and all-time full-dimensional discovery, positioning, tracking, identification and tracking of targets, and the operating distance can reach more than 15km. The optical platform camera system can be fixedly erected or used in vehicles. It is adopts military quality design, and the overall shell is made of super cast aluminum material, and the protection level reaches IP66, which effectively ensures the long-term stable operation of the equipment in the harsh field.

Features:

1.Proper functioning in severe environment: reinforced aluminum alloy housing.

2. Wide coverage: azimuth rotation range 0°～360°, pitch rotation range -90°～+90°, realizing no dead angle detection and full-dimensional coverage.

3. Fast turning speed: The turning speed can reach 60°/s, the acceleration can reach 120°/s2, it starts and stops quickly, and runs smoothly, which is helpful for capturing and tracking fast moving targets;

4. High control accuracy: using precision angle encoder and high-precision closed-loop servo control system, positioning accuracy can reach 0.01°, high-performance image processing unit with high-precision focus control mechanism to achieve precise automatic focusing;

5. Excellent tracking performance: The automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, tracking accuracy can reach ±0.5mrad, to ensure stable tracking of the target during fast flight and change of direction.

6. High degree of intelligence: With self-developed background management software, it can easily realize functions such as hot spot alarm, regional intrusion alarm, cross-border intrusion alarm, target tracking, long-distance small target recognition, radar linkage, panoramic stitching, 3D zoom positioning, etc. Greatly improve the unmanned, automated and informatized level of the system;

7. Multiple redundant protection: internal temperature monitoring, directional industrial defroster, improve the reliability of the system

8. Strong environmental adaptability: high-strength cast aluminum material, sprayed with three-proof paint, IP66 protection, rainproof, dustproof, anti-corrosion, anti-electromagnetic interference, suitable for various harsh environments.

Applications:

Mainly used in anti-UAV control, low-altitude air defense, military base security monitoring, airport monitoring, oil field and oil depot security.

Technical Parameters:

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.

Support and Services:

The Long Range Thermal Camera product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to assist with installation, troubleshooting, and maintenance to address any issues that may arise. Additionally, we provide ongoing firmware updates and technical documentation to keep your camera up-to-date and operating at its best.

FAQ:

Q: What is the brand name of this Long Range Thermal Camera?

A: The brand name is Hope-Wish.

Q: What is the model number of this Long Range Thermal Camera?

A: The model number is HP- (specific model number to be added).

Q: Where is this Long Range Thermal Camera manufactured?

A: This camera is manufactured in China.

Q: What is the maximum range of this Long Range Thermal Camera?

A: The maximum range of this camera is [insert specific range here].

Q: Does the Long Range Thermal Camera come with a warranty?

A: For information regarding the warranty of this camera, please refer to the warranty policy provided by the manufacturer.
